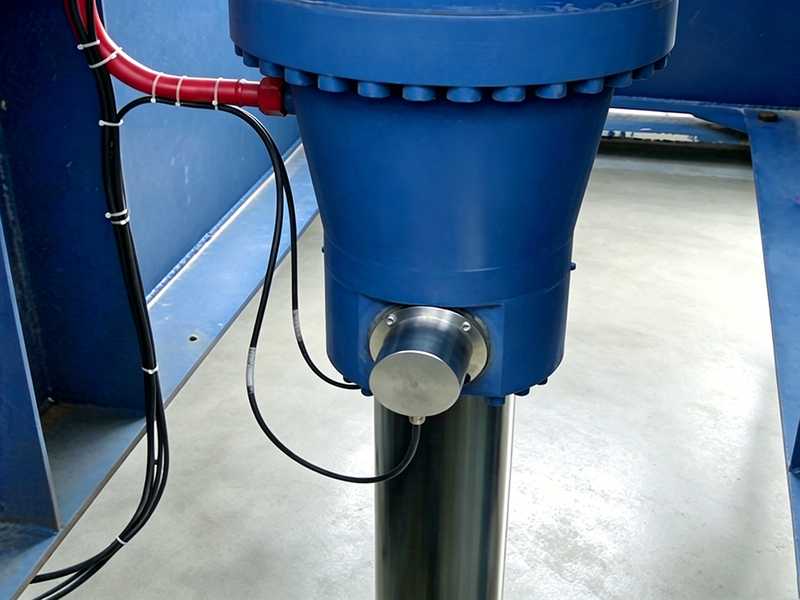

Stroke detection unit is the core component for precise control of hydraulic cylinders. Wujin Hydraulic's independently developed active magnetic detection stroke sensing technology, equipped with high-performance data acquisition and processing chips, delivers higher sensitivity, better temperature adaptability and frequency response than traditional Hall sensors. By designing a special structure on the piston rod surface, the sensor obtains accurate real-time position information when approaching, realizing high-precision, high-reliability monitoring of cylinder stroke.
Since the launch of the first-generation product in 2008, we have continuously iterated and launched incremental, absolute and miniaturized series. In 2012, we successfully developed the world's first stroke detection device with power-off memory function, leading the industry with our technical strength.
Model | Type | Power-off Memory Time (h) | Detection Accuracy (mm) | Protection Rating | Anti-interference Ability | Cumulative Error | Operating Speed (m/s) | Output Signal / Communication Protocol |
CPMS-I | Incremental | 0 | ±1 | IP67 | Standard | Yes | 4 | Square Wave Pulse |
